1. The hot melt melting very fast and the hot melt dispensing amount can be adjusted by the frequency converter.
2. This production line is stainless steel body and aluminum frame, which is strong, nice and long life.
3. This machine equips the cutting and trimming device, which is used to meet different filter specifications.
4. High Productive efficiency and good smoothness.
Circle Making Machine for Oil and Air Filter , Diameter 80mm
Specification
Maximum height of circle making: ≤300mm
Diameter of circle making: Φ80mm
Thickness of steel sheet for circle making: 0.3mm~1.0mnm
Production efficiency: 20pcs/min~40pcs/min
Power of motor: 1.0KW
Working power supply: 380V 50Hz
Dimension: 900mx800mx950mm
Weight: 350kg
Feature
1.This machine is applicable for circle making of internal and external protecting mesh of air filter element and air filter assembly housing.
2.It is two-roller circle making, and can automatically make circle forward and backward.
Introduction
Wenzhou Changjiang Filter Machine Company is a professional filter machine manufacturer in China since 1985. We produce about 150 kinds of filter machines and filter testers. All our machines with best quality and reasonable prices. If you have any enquire please don't forget to email me. Hope we will have the chance to cooperate with you.

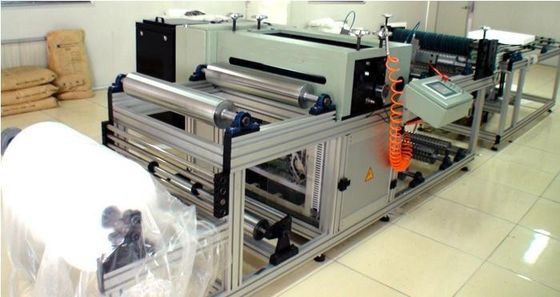

HEPA Rotary Filter Making Machine With 20mm - 100mm Pleating Height
Features:
1,Perfect design and reliable components ensure the high quality and excellent performance.
2,The whole machine is automatic control of with CNC system.
3,Touch screen operation. It’s very easy and Friendly for operator.
Specification:
1,Pleat height
Free adjustment of pleat height from 24mm to 96mm.
2,Pleat pitch control:
Adjustable pleat pitch from 2.8~4.5mm varies with the glue pressure and the operation speed.
3,Hot melt pattern:
Continuous hot-melt pattern available.
Intermittent hot-melt pattern available. Starting point is adjustable freely.
4,Stop glue between pleat packs:
Can set the pleat number of the filter pack with 3 pleats without glue. Easy to find and cut
|
Profile |
The pleating machine is fully automatic production line for mass production of HEPA and ULPA filters. The machine adopts mechanical,electrical and pneumatic control as a whole, high efficiency,operate easily,running stable and reliable,Widely be used to manufacture all kinds of mini pleat filters of glass fiber media. The machine is total independent design and manufacture. After years of hard working, now we are so confident that our topping engineers make perfect pleating machine up to international level. From the market feedback, almost all users including many international air filter makers are satisfied with the machine. We always devote ourselves to manufacturing best pleating machine for you. |
|
Process of mini pleat filter |
Media paper roll→Thread media onto Air bulking roller→Turn on the tension →Media to be imprinted→Cut the needless media edge to ensure the correct width of media→Apply hot melt glue →Slow cooling → Pleat filter pack→Filter pack forwarded to conveyor belt→Cut the media to make single filter pack manually. |
|
Machine Components |
1,Media roll control system: The specific tension control is precision and so significant for quality pleating. |
|
Specification |
1,Max. Diameter of Media Roll 800mm |

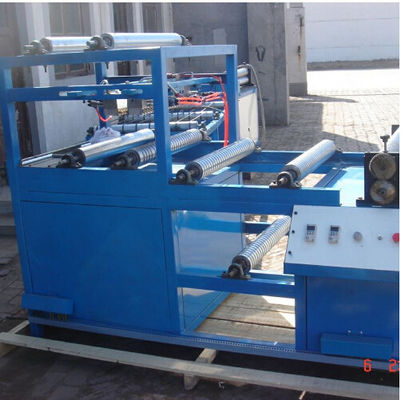

Full-Auto Combined HEPA Pleating Machine with Hot Melt Applicator ,Pleating Height 100-300mm
General Description
1.The production line is customized to pleat the filter media with hot melt dispensing at the same time by servo motor control.
2.This machine combines the rotary pleating and knife pleating together to ensure a good pleating to all kinds of material;
Machine Components
1. De-coiler
2. Online slitting device
3. Pre-marking device
4. Hot melt system
5. Knife pleating system
6. Collecting system
Specifications
1. De-coiler
A. Working width: 1200mm;
B. Shaft with locking bolts: 65mm diameter;
C. Max load: 150kg;
D. Max roll diameter: 1000mm
E. Motor driven (customized): 0.75Kw
F. Tension control device
G. Machine weight: 300Kg
H. Machine size: 1300mm*950mm*1300mm
2. Online slitting device
A. Working width: 1200mm
B. Six pneumatic slitting knives (two with round blades and four with notch blades)
C. Pressure: 0.6Mpa
D. Adjustable slitting width
E. Speed: 0.5m-12m/min (adjustable);
F. Machine weight: 350Kg
G. Machine size: 1000mm*1500mm*1100mm
3. Pre-marking device-equipped with hot melt system together
A. Working width: 1200mm
B. Marking distance: 100-300mm;
C. Motor power: 3.75Kw
D. Machine weight: 400kg
4. Hot melt system
A. Tank capacity: 60L (two sets)
B. Hose length: 3.6m-four units
C. Motor Power: 400W
D. Melting power: 8Kw
E. Melting speed: 45kg/h;
F. Max dispensing quantity: 1000g/min;
G. Gear pump: 12cc/rev;
H. Max RPM of pump: 45RPM;
I. Max melting temperature: 230 degree
J. Hot melt type: PE/EVA/PP/PO
K. 48 nozzles each side; Each nozzle has a separate module and one set of modules are controlled by four solenoid valves (MAC USA);
L. Gluing option: Two sides; One side; Continuously, intermittently; Auto; Manual;
M. Nozzle size: 0.8mm
N. 0.6Mpa pressure;
O. Machine weight: 450kg/set;
P. Machine size: 1200mm*1600mm*1700mm
5. Knife pleating system
A. Pleating height: 100-300mm (servo control-auto adjustment)
B. Speed: 0-150pleats/min (adjustable)
C. Motor power: 3.75Kw
D. Heating power: 4Kw (pre and post heating-aluminum plate)
E. Heating temperature: 20-200 degree (adjustable)
F. Air pressure: 0.6Mpa;
G. Servo motor control;
H. With counting function
I. PLC touch screen;
J. Machine weight: 1950kg
K. Machine size: 1670mm*1720mm*1240mm (L*W*H)
6. Collecting system
A. Width: 1225mm
B. Length: 3m
C. Motor power: 0.75Kw
Notes for specifications:
1. Machine frame: Extruded aluminum and steel plate;
2. Power supply: 380V/3PHASE/50Hz

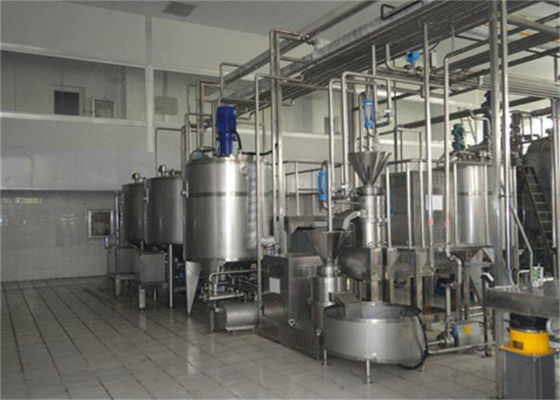

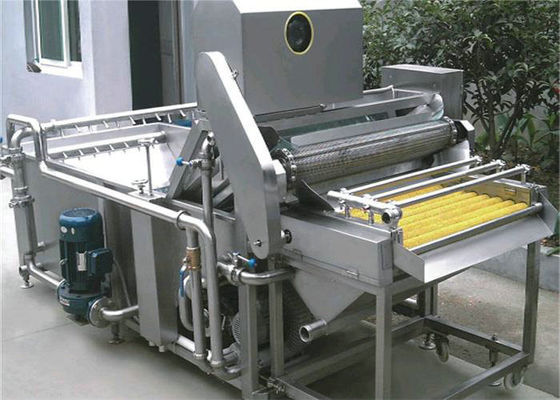

Natural Fruit Juice Concentrate Machine Production Line with CE & HACCP
We can undertake the whole line production of following products:
1. Apple,grape,strawberry,orange,pear,aprict,coconut and peach etc.
2. Tomato,carrot,ginger,cucumber,pumpkin and celery etc.
3. Pineapple,megranate,mango,lichee and passionflower etc.
4. Aice,cactus,chinese wolfbeery,chinese date and seebuckthom etc.
1. Water Treatment section:
Sand filter
Activated carbon filter
Water softener
Precision filter
Reverser osmosis filter
Electrical control system
UV filter
Water storage tank
2. Fresh Fruit Pretreatment Section
Fruit sorter
Fruit washer
Fruit Crusher
Receive materials tank
Receiving materials residue tank
Spiral juice extractor
Buffer tank
The tubular enzyme inactivation machine
Juice tank
3. Sugar Ingredient Section
Hot Water Tank
Plate heat exchanger
Round high speed emulsification tank
centrifugal pump
Mixing tank
Self-priming pump
Duplex Filter

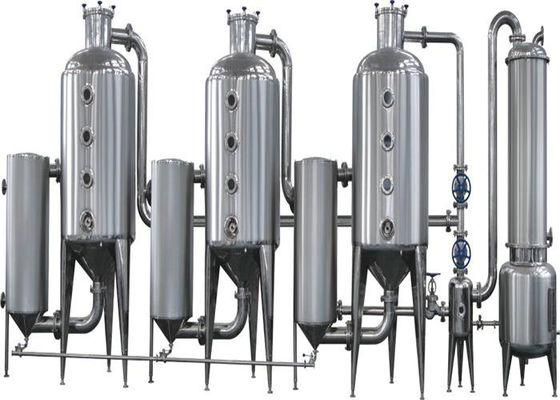

4. Three-effect Evaporation Section Concentrates
Three-effect evaporator for concentration
5. Sterilizing Section
Buffer tank
Tube UHT sterilizer
High pressure homogenizer
6. Filling & Packing Section
7. CIP Cleaning Section
Acid tank
Alkali tank
Hot water tank
Pleat heat exchanger
Cleaning pump
8. Compressor
Air compressor
Air filter
Air dryer
Air storage tank
9. Steam System
Horizontal boiler
Steam tank
|
Raw material: |
Fresh Orange, Lemon, Citrus, Pomelo, Grapefruit |
|
End product: |
NFC Fresh Nature Juice, juice Concentrate, oil, orange Pulp, cyst |
|
Production capacity: |
20t/D-2000t/D |
|
Output percentage: |
≥90% |
|
Solid content |
7~12brix |
|
Packing type for end product: |
Aseptic Bag/glass Bottle/pet Bottle /gable Top Box/aseptic brick acrton |

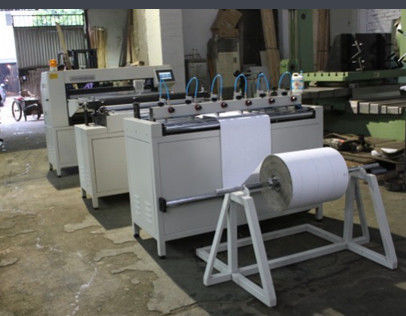

8mm - 55mm Filter Pleating Machine For One-Layer / Multi-Layered Filter Media Pleating
